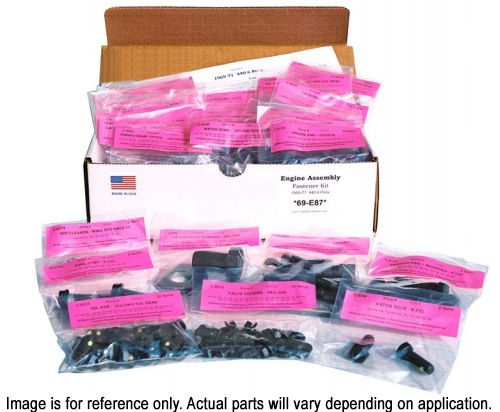

The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler.
Master Chassis Kit Includes:
Part#
Application
Notes
Pcs
C-8027
Differential Carrier Cover - 9 3/4
3/8" HX Flng Bolts "E"
10
C-8084
Engine Insulator > Eng Brkt - exc HEMI
HX Nuts, Coni Wa's
4
C-8086
Engine Mount Brackets - 383/440
HX Bolts, 5/8 AD Nuts, Flat Wa's
19
C-8088
Engine Insulator > Body - V8 exc HEMI
HX Bolts "38", Coni Wa's
4
C-8094
Trans > INsulator > Trans
HX Coni Sems, Sqr Wa's
4
C-8104
Wheel Cylinders (2) w 1/4-20
HX Flng Screws
4
C-8105
Strut Rod > K-Frame
5/8-11 Lock Nuts
4
C-8106
Driveshaft > Flange
Straps, HX Bolts, Split Wa's
10
C-8110
Shocks (Fr) - Lwr Mounting
7/16 HX Bolts "TR" or "D", Lock Nut
4
C-8111
Stabilizer Bar Center Supports
HX Bolts "H", Coni Sems, Lock Nuts
16
C-8112
Leaf Spring Mounting @ Front
Hub Bolts, Coni Keps
16
C-8113
Shackles - Nuts Only
HX Nuts
4
C-8115
Axle Housing > Springs
1/2-20 x 7.12 U-Bolts, Lock Nuts
12
C-8117
Suspension Bumpers Brkt > 8 3/4 Axle
HX Coni Sems "Anchor"
2
C-8120
Shocks (Rr) - Upr Mounting
HX Nuts Only
2
C-8121
Brake Calipers > Spindle
HX Coni Sems
4
C-8122
Brake Rotor Shields
HX Coni Sems
6
C-8123
Shocks (Rr) - Upr Mounting
HX Bolts, Lock Nuts
4
C-8124
Steering Gear
HI-HX Bolts, Split Wa's
6
C-8125
Brake CAliper Tube Brackets
HX Coni Sems
4
C-8131
Gas Tank
J-Bolts, Lock NUts
4
C-8133
Differential Carrier - 8 3/4
Nuts w/ Nylon Patch
10
C-8157
Suspension Bumper Brkt > 9 3/4 Axle
HX Coni Sems "Anchor"
3
C-8176
Suspension Bumpers (Fr)
Cone Lock Nuts
4
C-8177
Brake Drum Retainers
1/2" Stud, Green Push On Retain
6
C-8178
Steering Linkage
Tri-slot Nuts, Cotter Pins
12
C-8200
Trans Crossmember
Flng Bolts, Flng Nuts
8
C-8202
Brake Cable Tension Adjuster
Flange Lock Nut Only
1
C-8203
Proportioning Valve> Apron
Red Flange Lock Nut
1
C-8212
Control Arms (Upr)
Cam Bolts, Washers, Nuts
4
C-8214
Leak Spring Mounting @ Front
"H" Marked Bolts, Marsden Nut
4
C-8215
Idler Arm
"TR" Hex Bolt, Tri-slot Nut, Pin
3
C-8216
K-Frame > Body
Special Hex Coni Sems
4
C-8222
Axle Retaining Nuts
HX Lock, Nuts, Flng Nuts
10
C-8224
Ball Joint w/ Disc Brakes
HX Bolts, Slotted Nuts, Pins
12
C-8226
Pitman Arm
Nut, Split Wa
2
C-8228
Brake Hoses > Bracket Clips
U-Clips
3
C-8330
Parking Brake Control > Body
HX Coni Sems, Coni Keps
3
C-8332
Master Cylinder
HX Luck Nuts
4
C-8334
Master Cylinder Support Plate
Coni Keps, Ext Keps, Sealer
5
C-8336
Brake Booster
Hx Lock Nuts
4
C-8338
Accelerator Pedal
Coni Keps, Coni Sems
6
C-8339
Trans Insulator > Crossmember
HX Bolt, Flat Wa, Lock Nut
3
C-8440
Suspension Bumpers (Rr)
HX Flng Screws
4
